Rigger Triple Attachment Pulley


An evolution of the Triple Attachment Pulley first brought to the market 10 years ago by DMM.

The hot forged swing-cheek pulley with an in-built three hole rigging plate allows creative configurations and enables direct connection to textile components to save on weight and complication. The Rigger Pulleys feature a new axle construction achieved by using highly accurate CNC operations, which produces a stronger axle/side plate interface for increased longevity.

Bolstered connection areas lead to high configured strengths. The newly developed side plates combined with the axle construction means a hugely increased MBS to 40kN. The side plates boast increased fairleads and tuned angles for more efficient prusik minding.

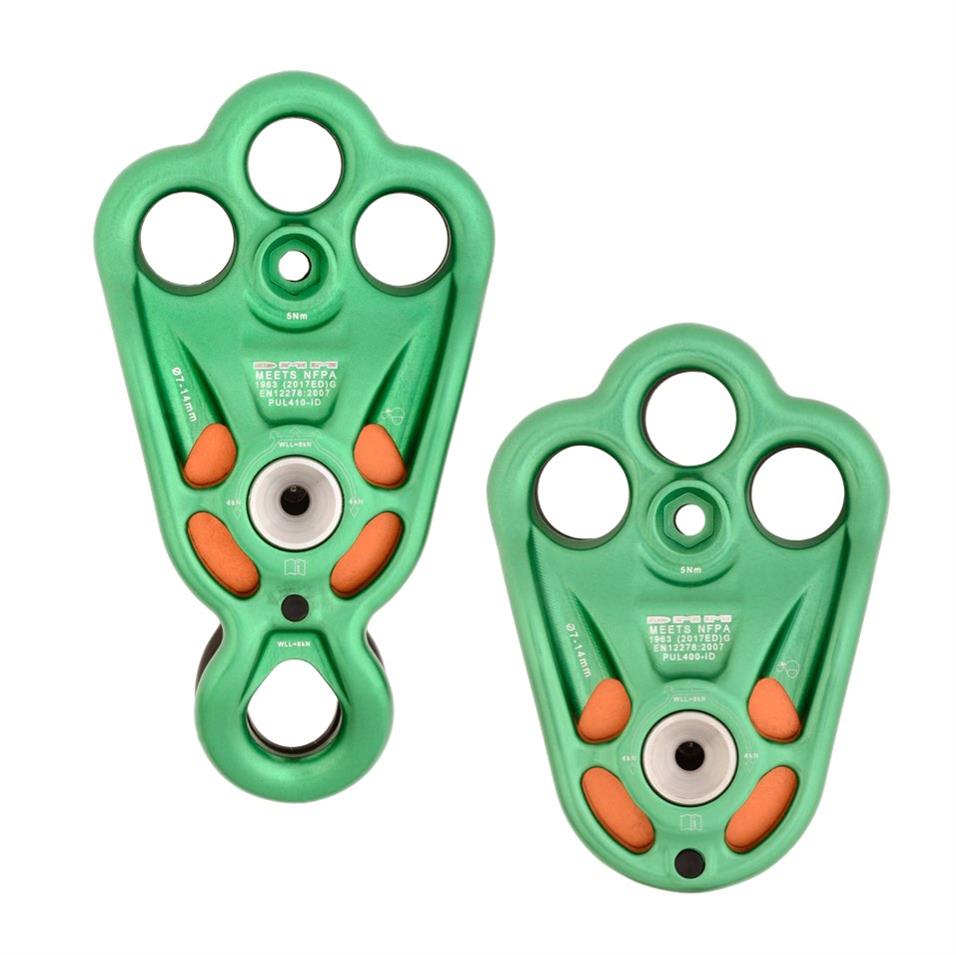

The Rigger Pulley comes in two versions; the Rigger and the Rigger Becket. Both feature high efficiency roller bearings.


Backorder Availability:
Usually ships in 7-14 Days
Please Contact Us for an estimated delivery timeframe.

Category: Tag:


Ultra-high strength pulley side plates

High efficiency roller bearings

Hollow axle for reduced weight

Increased rope-bearing cross-section for textile attachments to the attachment holes

Same sheave as previous Triple Attachment Pulley

New axle design to increase robustness of the axle/ nut to side plate interface

Optional M5 nut and bolt for locking side plates together and can be installed from either side

DMM iD optional

Can be used as rig plate with or without sheave

Rigger Pulley PUL400 7-14mm 68 x 94mm 28mm 176g 8kN 40kN EN12278:2007

Rigger Pulley Becket PUL410 7-14mm 68 x 124mm 28mm 198g 8kN 40kN EN12278:2007
