12mm Boa HMS

12mm Boa HMS

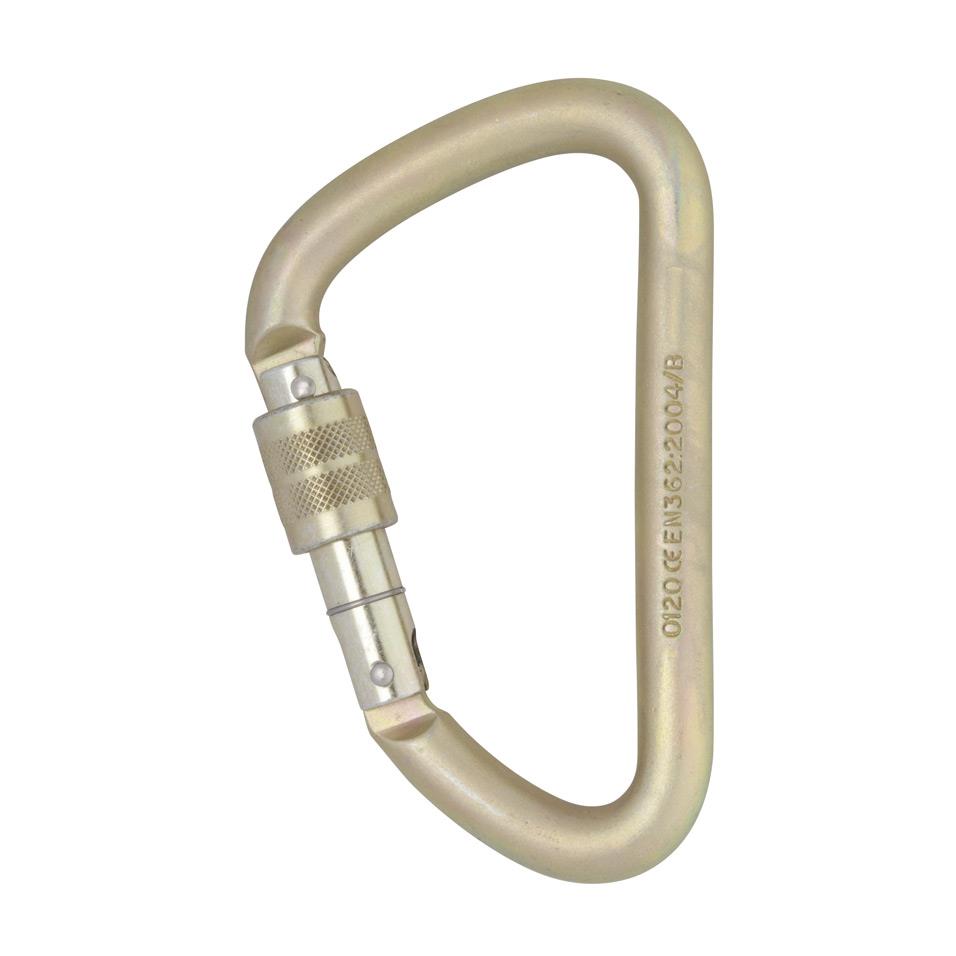

The 12mm Boa HMS has all the versatility of its alloy sibling, but has a rated strength of 40kN. It can be used for many applications where a large gate opening or high internal volume are required. The smooth rounded internal form is very useful when rotating the carabiner through attachment eyes, and the basket curves nicely to allow central hanging of loaded components.

Category: Tag:

Description

HMS for space and rigging

HMS connectors are pear shaped and often have similar characteristics to ovals in how they deal with loaded components, i.e. they also allow devices and connectors to self-centre. Moreover, the extended basket allows for additional component connection. Knots in a system such as an Italian hitch can rotate easily between taking in and paying out (even with larger diameter ropes). In general, HMS connectors are slightly oversized to accommodate the added volume of bigger ropes and to feel secure in a gloved hand.

Cold forged

Boa Screwgate C852 Light Gold 40kN 10kN 12kN 76 x 123mm 262g 24mm EN 362:2004 B, EN EN12275:2013 B & H

Boa Kwiklock C853 Light Gold 40kN 10kN 12kN 76 x 123mm 277g 24mm EN 362:2004 B, EN EN12275:2013 B, H & K

Boa Kwiklock ANSI C853ANSI Light Gold 40kN 16kN 12kN 76 x 123mm 290g 22mm EN 362:2004 B, ANSI/ASSE Z359.12:2009, CSA Z259.12:2011

Boa Locksafe C857 Light Gold 40kN 10kN 12kN 76 x 123mm 277g 24mm EN 362:2004 B, EN EN12275:2013 B, H & K

Boa Locksafe ANSI C857ANSI Light Gold 40kN 16kN 12kN 76 x 123mm 293g 22mm EN 362:2004 B, ANSI/ASSE Z359.12:2009, CSA Z259.12:2011
