12mm Steel Offset D

12mm Steel Offset D

An Offset D connector takes the spinal loading strength of a D-shaped back but extends the basket at one end to maximize gate opening and overall size without compromising ergonomics and weight. Cold forged from 12mm bar, the strengths achieved in testing exceed 45kN and it is first choice in applications requiring stronger connectors in their system

Category: Tag:

Description

Offset D for ergonomics

The Offset D connector shape takes the optimal loading of a D-shaped connector but with an increased internal volume at one end – the basket. This adds to the positivity in the hand, especially when wearing gloves.

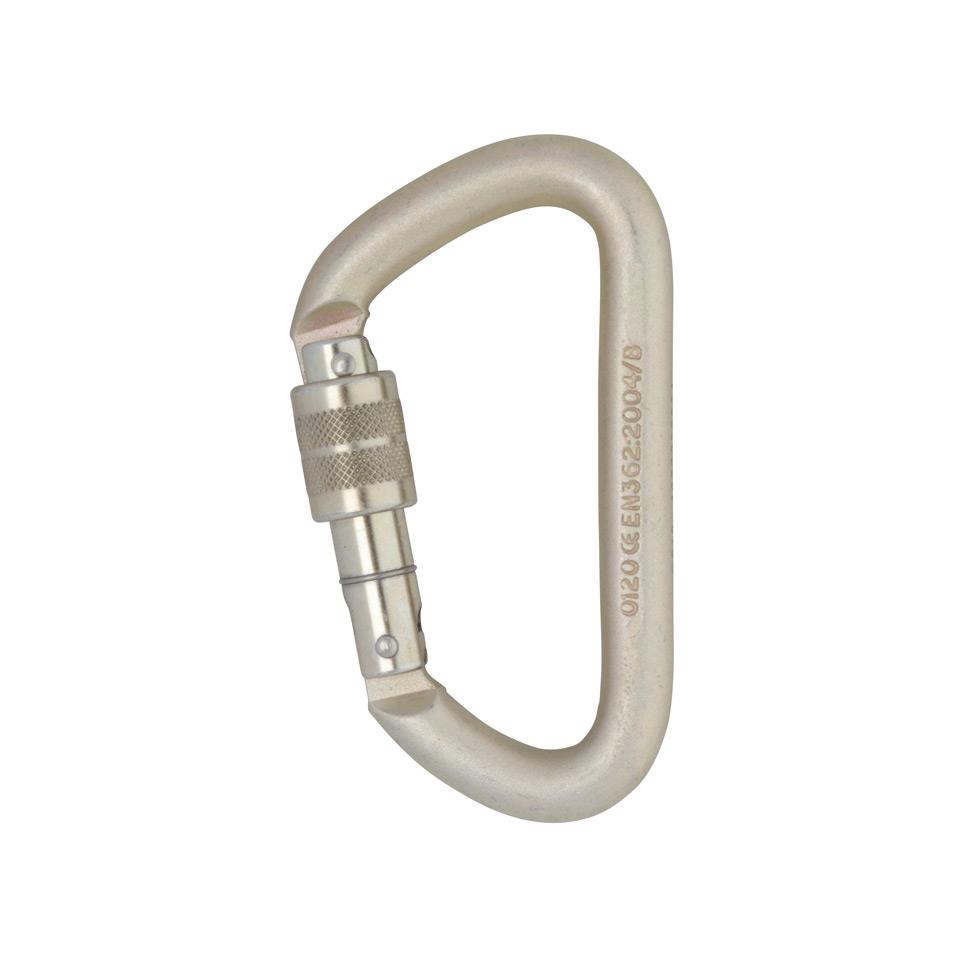

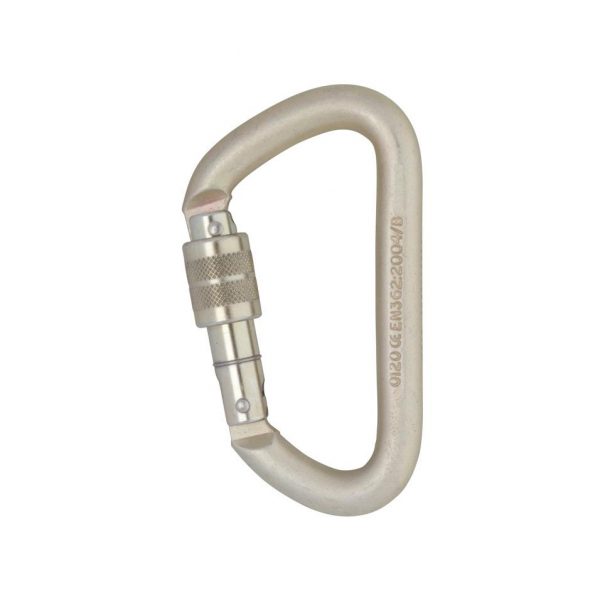

Cold forged12mm Offset D Screwgate C812 Light Gold 45kN 12kN 12kN 62 x 111mm 232g 18mm EN 362:2004 B/T, EN12275:2013 B

12mm Offset D Screwgate Captive Bar C812CB Light Gold 45kN 12kN 12kN 62 x 111mm 232g 18mm EN362:2004 T, EN12275:2013 B

12mm Offset D Kwiklock C813 Light Gold 45kN 12kN 12kN 62 x 111mm 245g 15mm EN 362:2004 B/T, EN12275:2013 B

12mm Offset D Kwiklock Captive Bar C813CB Light Gold 45kN 12kN 12kN 62 x 111mm 245g 15mm EN362:2004 T, EN12275:2013 B

12mm Offset D Kwiklock ANSI C813ANSI Light Gold 45kN 16kN 12kN 62 x 111mm 259g 17mm EN 362:2004 B/T, ANSI/ASSE Z359.12-2019, CAN/CSA Z259.12-16

12mm Offset D Locksafe C817 Light Gold 45kN 12kN 12kN 62 x 111mm 248g 17mm EN 362:2004 B/T, EN12275:2013 B

12mm Offset D Locksafe Captive Bar C817CB Light Gold 45kN 12kN 12kN 62 x 111mm 248g 17mm EN362:2004 T, EN12275:2013 B

12mm Offset D Locksafe ANSI C817ANSI Light Gold 45kN 16kN 12kN 62 x 111mm 262g 15mm EN 362:2004 B/T, ANSI/ASSE Z359.12-2019, CAN/CSA Z259.12-16
