ROLLCLIP Z

ROLLCLIP Z

Pulley-carabiner that facilitates installation on anchors and devices

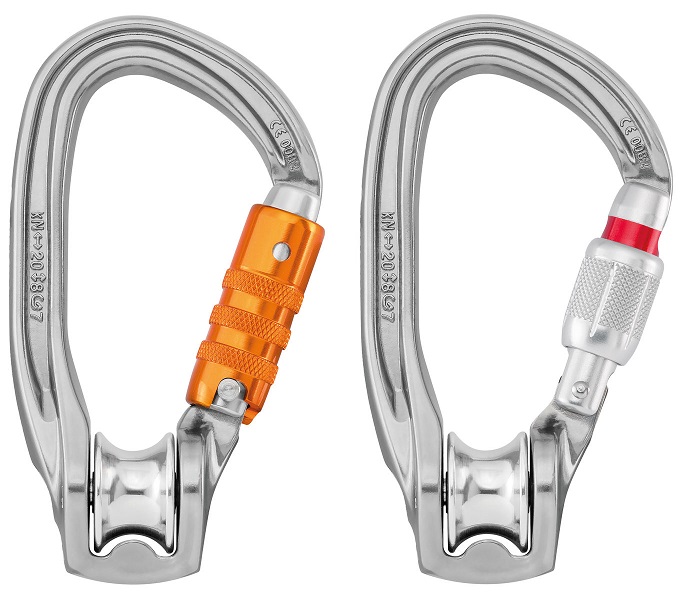

ROLLCLIP Z is a pulley-carabiner with a gate opening on the non-pulley side to facilitate installation on anchors and devices. It is available in two locking systems: automatic TRIACT-LOCK system or manual SCREW-LOCK system.

$44.95$49.95

SKU: N/A Categories: , Tag:

Description

  • Easier handling:

    – sheave mounted on sealed ball bearings for excellent efficiency

    – gate opening on the non-pulley side, to facilitate installation on devices

    – Keylock system prevents any accidental snagging of the carabiner when putting the pulley in place

  • H cross-section of carabiner:

    – ensures an improved strength-to-weight ratio

    – protects markings from abrasion

  • Two locking systems available:

    – TRIACT-LOCK: automatic locking with triple-action gate opening

    – SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked

Specifications

  • Material(s): aluminum
  • Min. rope diameter: 7 mm
  • Max. rope diameter: 13 mm
  • Sheave diameter: 18 mm
  • Maximum working load: 2 x 2 = 4 kN
  • Efficiency: 85 %
  • Major axis strength: 20 kN
  • Minor axis strength: 8 kN
  • Open gate strength: 7 kN

References

References P75 TL P75 SL
Locking system TRIACT-LOCK SCREW-LOCK
Weight 110 g 105 g
Certification(s) CE EN 362, EN 12278, EAC CE EN 362, EN 12278, EAC
Gate opening 20 mm 21 mm
Guarantee 3 years 3 years
Packing 1 1

Additional information

Locking System

Triact-Lock, Screw-Lock
