Rollclip A

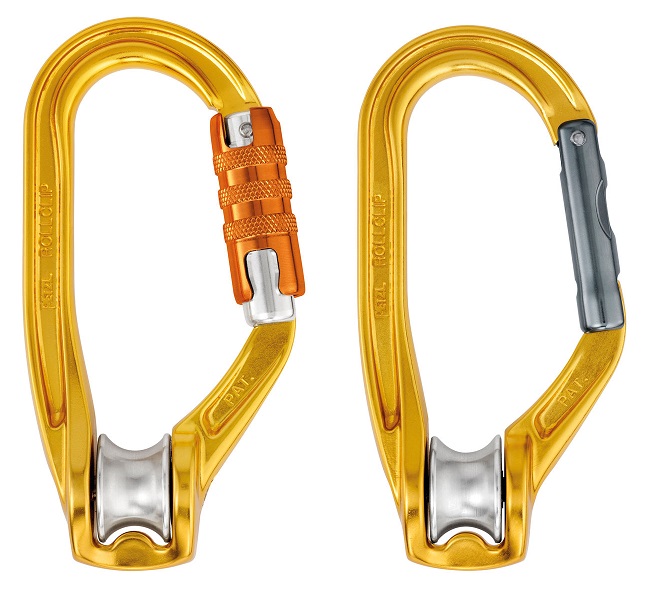

ROLLCLIP A

Pulley-carabiner that facilitates installation of the rope when pulley is connected to the anchor

ROLLCLIP A is a pulley-carabiner with a gate opening on the pulley side that facilitates installation of the rope when the pulley is fixed to the anchor. It is available with an automatic TRIACT-LOCK locking system, or without a locking system. ROLLCLIP A may be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device.

$39.95$49.95

SKU: N/A Categories: , Tag:

Description

  • Easier handling:

    – sheave mounted on sealed ball bearings for excellent efficiency

    – gate opening on the pulley side facilitates installation of the rope when the pulley is fixed to the anchor

    – may be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis and to limit the risk of it flipping

    – Keylock system prevents any accidental snagging of the carabiner when putting the pulley in place

  • H cross-section of carabiner:

    – ensures an improved strength-to-weight ratio

    – protects markings from abrasion

  • Available in versions with or without TRIACT-LOCK locking system

Specifications

  • Material(s): aluminum
  • Min. rope diameter: 7 mm
  • Max. rope diameter: 13 mm
  • Sheave diameter: 18 mm
  • Maximum working load: 2 x 2 = 4 kN
  • Efficiency: 85 %
  • Major axis strength: 20 kN
  • Minor axis strength: 8 kN
  • Open gate strength: 7 kN

References

References P74 TL P74
Locking system TRIACT-LOCK Non-locking
Weight 115 g 105 g
Certification(s) CE EN 362, EN 12275, EN 12278, EAC CE EN 12275, EN 12278, EAC
Gate opening 22 mm 25 mm
Guarantee 3 years 3 years
Packing 1 1

Additional information

Locking System

Triact-Lock, Non-Locking
