COEUR BOLT STEEL

COEUR BOLT STEEL

Standard steel anchor for interior uses or non-permanent installations (pack of 20)

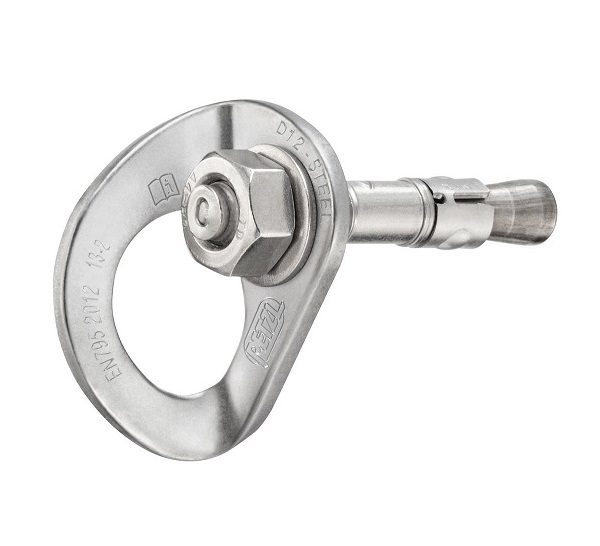

The COEUR BOLT STEEL is a standard steel anchor composed of a COEUR STEEL hanger, a bolt and a nut. It is designed for interior uses or non-permanent installations. It is available in 10 and 12 mm diameters.

$99.95$119.95

Description

  • Economical choice for low-corrosion environments
  • Assembly composed of a COEUR STEEL hanger, a bolt a nut
  • Easy clipping:

    – the wide, ergonomic connection hole facilitates carabiner clipping

    – the width of the hole allows installation of two carabiners at the same time

  • Prevents wear of connectors: the thickness of the hanger and the rounded edges of the connection hole limit wear of connectors
  • Hanger anti-rotation system: textured back keeps the hanger from turning when the anchor is being installed or when it is heavily laterally loaded during use
  • Available in two bolt sizes (10 or 12 mm)
  • COEUR STEEL hangers, available separately:

    – for 10 mm diameter bolt (P36AA 10)

    – for 12 mm diameter bolt (P36AA 12)

Specifications

  • Material(s): steel

References

References P36BA 10 P36BA 12
Diameter 10 mm 12 mm
Certification(s) EN 959
Weight 110 g 135 g
Drilling depth 8,5 cm 9,5 cm
Drilling diameter 10 mm 12 mm
Resistance to cutting on concrete 50 MPa 23 kN 25 kN
Pull-out strength in concrete 50 MPa 15 kN 18 kN
Guarantee 3 years 3 years
Packing 1 1

Additional information

Size

10mm, 12mm
