Retrieval Cones
Conical leading edge guides cone through anchor components reliably and with little resistance, then locates in retrieval element.
Max diameter tailored to a selection of common tree care anchor components/assemblies.
High performance polymer – impact resistance, UV tolerance, high dimensional accuracy combine to ensure reliable performance over extended lifespan
Dimensions of cord channel and knot cavity are optimised:
– to grip specified cord (Teufelberger Orion 3mm) so that cone is unlikely to slide off cord (not ideal when at height); and
– to increase maximum wall thickness and consequently increased strength
Colour coded – Cone S = Yellow/OD 20.5mm, Cone L = Red/OD22.3mm. Assessed performance in retrieval >2kN (with Teufelberger Orion 3mm red)
Retrieval Cone Small without cord AR2950 Yellow – – 20.5mm OD 3g –
Retrieval Cone Small with cord AR2950C Yellow – – 20.5mm OD 4g –
Retrieval Cone Large without cord AR2960 Red – – 22.3mm OD 5g –

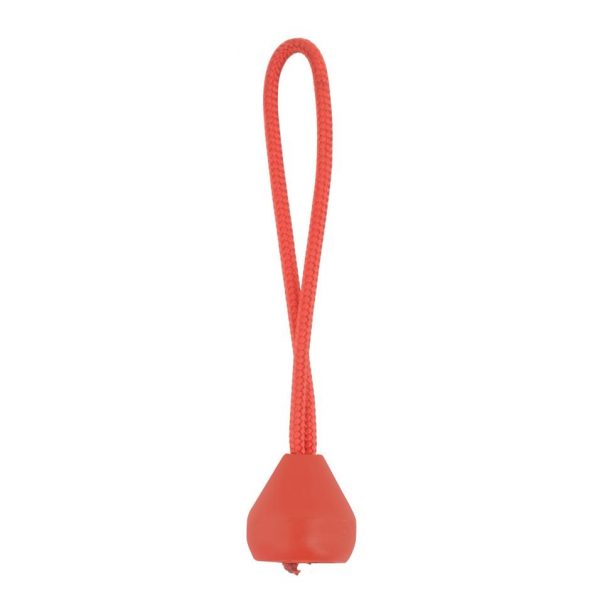

Retrieval Cone Large with cord AR2960C Red – – 22.3mm OD 6g –
